رله بیمتال

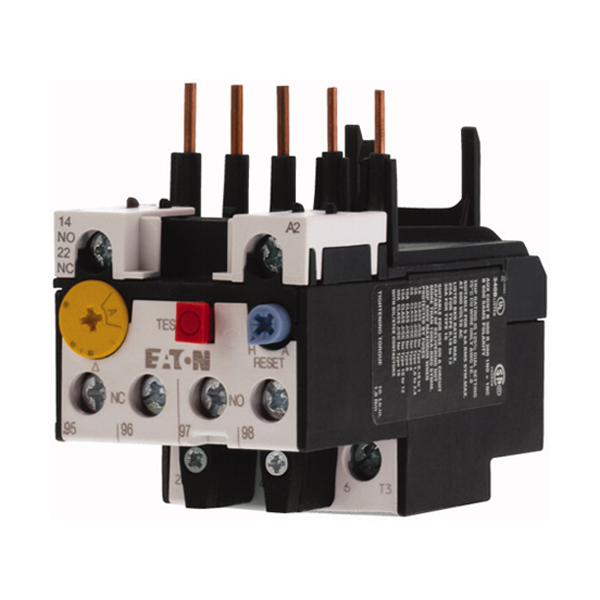

در رله بیمتال ایتون (مولر) سه تیغه تعبیه شده که سیم حامل جریان چند حلقه به دور آن پیچیده می شود. در اثر عبور جریان اضافه بار، هادی ها گرم ، حرارات به بی متال منتقل می شود و باعث خم شدن تیغه می شود. حرکت هر یک از بی متالها به اهرمی فشا ر می آورد و با جا به جا شدن اهرم ، یک میکرو سوئچ که دارای کنتاکت تبدیل باز و بسته است تغییر وضعیت می دهد و مدار فرمان را قطع می کند.
رله بیمتال مولر یا همان Z overload relays دارای مشخصات زیر می باشد
Protection with phase loss and overload
Auxiliary contacts switch off the motor protection and signal the fault
Suitable for protection of EEx e-motors
Optimised for the xStart concept
The overload relay Z can be mounted directly on contactor DIL M up to 250 A
Separate mounting of the relay possible
رله بیمتال Electronic motor-protective relay ZEB دارای مشخصات زیر می باشد
Solution for enhanced motor protection
Self-supplying electronics avoids need for connection of an external supply voltage
Adjustable tripping classes for optimum protection at varying starting conditions
Can be mounted directly on contactor DILM results in space savings in the control panel
Integrated earth-fault current detection
Adjustable single-phasing sensitivity for symmetric and asymmetric loads
