تایمرReviewed by MULLIRAN on Dec 7Rating: ۵.۰مینی PLC های EASYمینی PLC های EASY ایتون یا همان EASY RELAY در سه مدل EASY 500-700-800 موجود می باشد که بسیاری از توایع کنترل و برنامه ریزی را در خود جای می دهد و از ویژگی های این مینی PLC ها راه اندازی آسان و ساده ، قابلیت برنامه ریزی نرم افزاری و تطبیق پذیری طبقات مختلف عملکرد می باشد که این محصول را جهت استفاده گسترده در صنعت و اتوماسیون بهینه کرده است

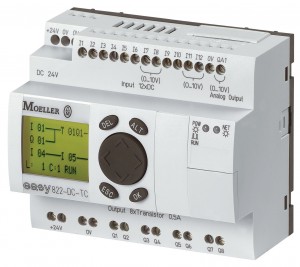

مینی PLC های EASY

مینی PLC های EASY

مینی PLC های EASY ایتون (مولر) یا همان EASY RELAY در رده رله های قابل برنامه ریزی قرار میگیرند و در سه مدل EASY 500-700-800 موجود می باشد که بسیاری از توایع کنترل و برنامه ریزی را در خود جای می دهد و از ویژگی های این مینی PLC ها راه اندازی آسان و ساده ، قابلیت برنامه ریزی نرم افزاری و تطبیق پذیری طبقات مختلف عملکرد می باشد که این محصول را جهت استفاده گسترده در صنعت و اتوماسیون بهینه کرده است

easy500

For small-scale applications with up to 12 I/Os

  • ۱:۱ electronic circuit diagram entry
  • Circuit diagram entry directly on the device is possible
  • ۱۲۸ rungs with 3 contacts each and 1 coil in series
  • Functions such as multi-function timing relays, impulse relays, counters, analogue value comparators, week and year time switches, value entry, value display
  • Connection possible to Ethernet (programming and OPC functionality)

easy700

For solving medium-sized control tasks up to 40 I/Os

  • Full functional range of an easy500
  • ۱۲۸ rungs with 3 contacts each and 1 coil in series
  • Local and remote expansion possible for flexibility in the application
  • Connection possible to standard bus systems (PROFIBUS, CANopen, DeviceNet, Asi) and Ethernet (programming and OPC functionality)

easy800

Ideal for large open-loop and closed-loop control tasks with up to 328 I/Os

  • Full functional range of an easy700
  • A host of additional functions such as PID controller, maths functions, pulse width modulation, value scaling, high-speed counters (5 kHz)
  • ۲۵۶ rungs with 4 contacts each and 1 coil in series
  • Digital and analogue expandability
  • Integrated communication via easyNet possible (up to 8 stations – up to 1000 m)
  • Connection possible to standard bus systems (PROFIBUS, CANopen, DeviceNet, Asi) and Ethernet (programming and OPC functionality)
  • Online communication with easy800 via bluetooth with bluetooth adapter EASY800-BLT-ADP.
    (For further informations please go to “Bluetooth”)
  • Mobile remote access to easy800 through Android smartphone with the free easyRemote Display App and Bluetooth adapter.
    (Further information under “easyApp”.)
